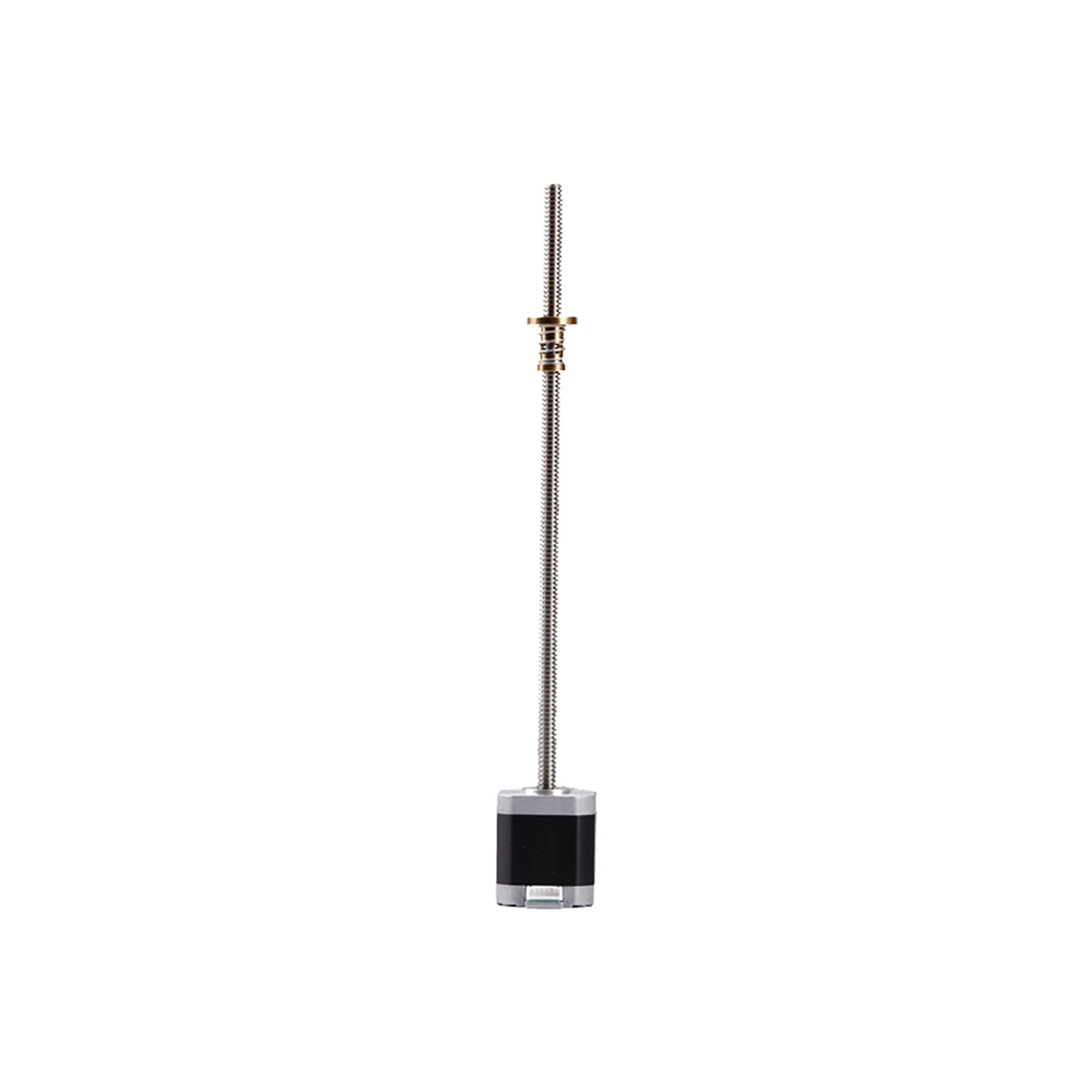

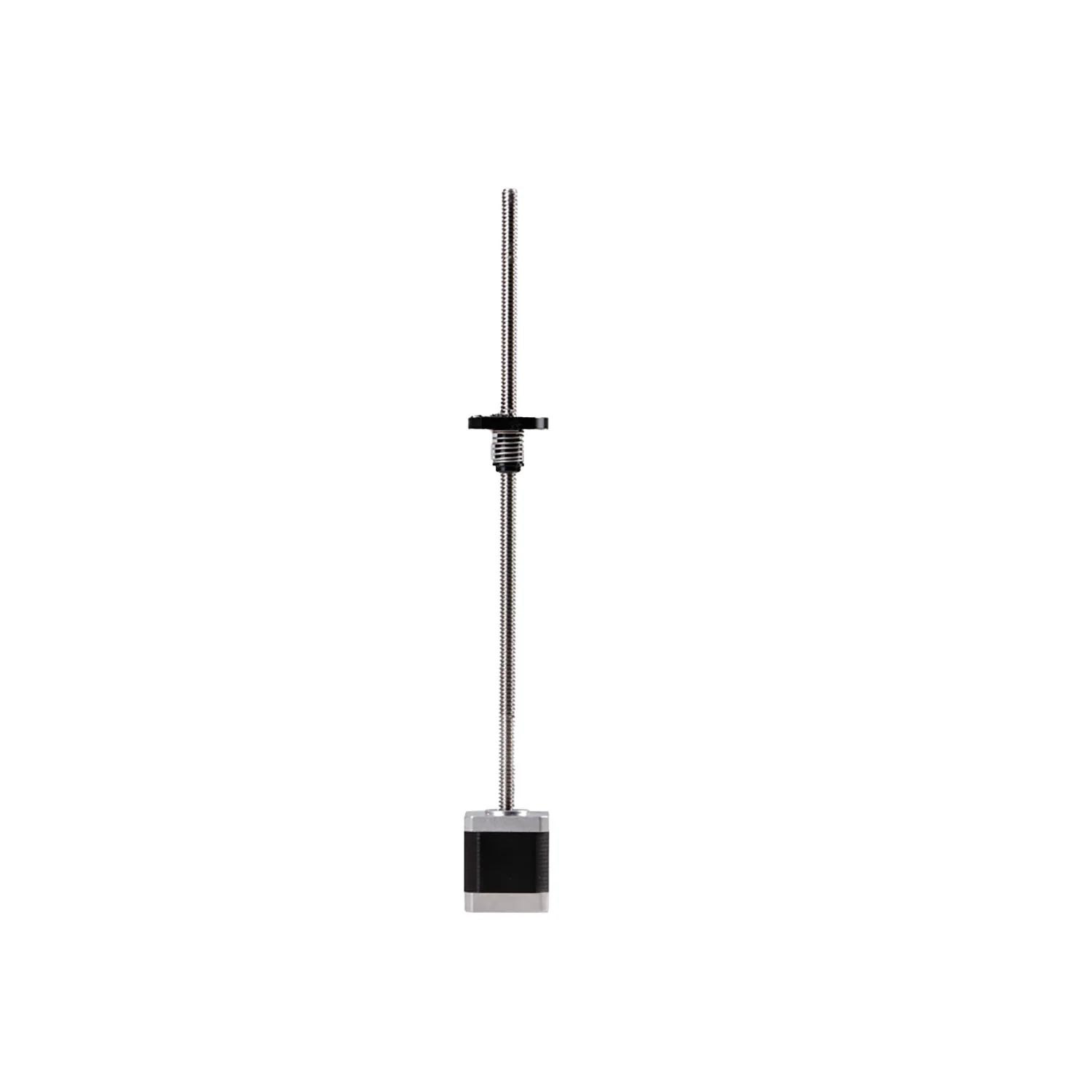

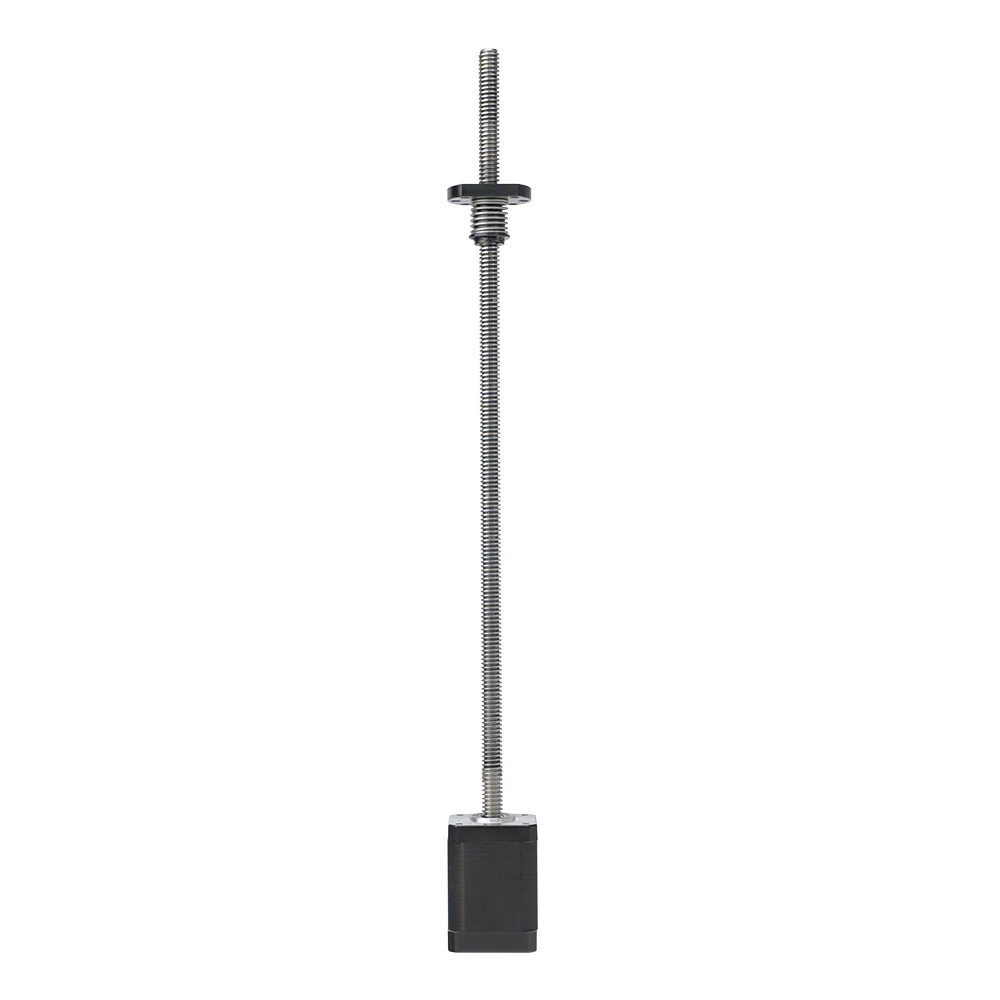

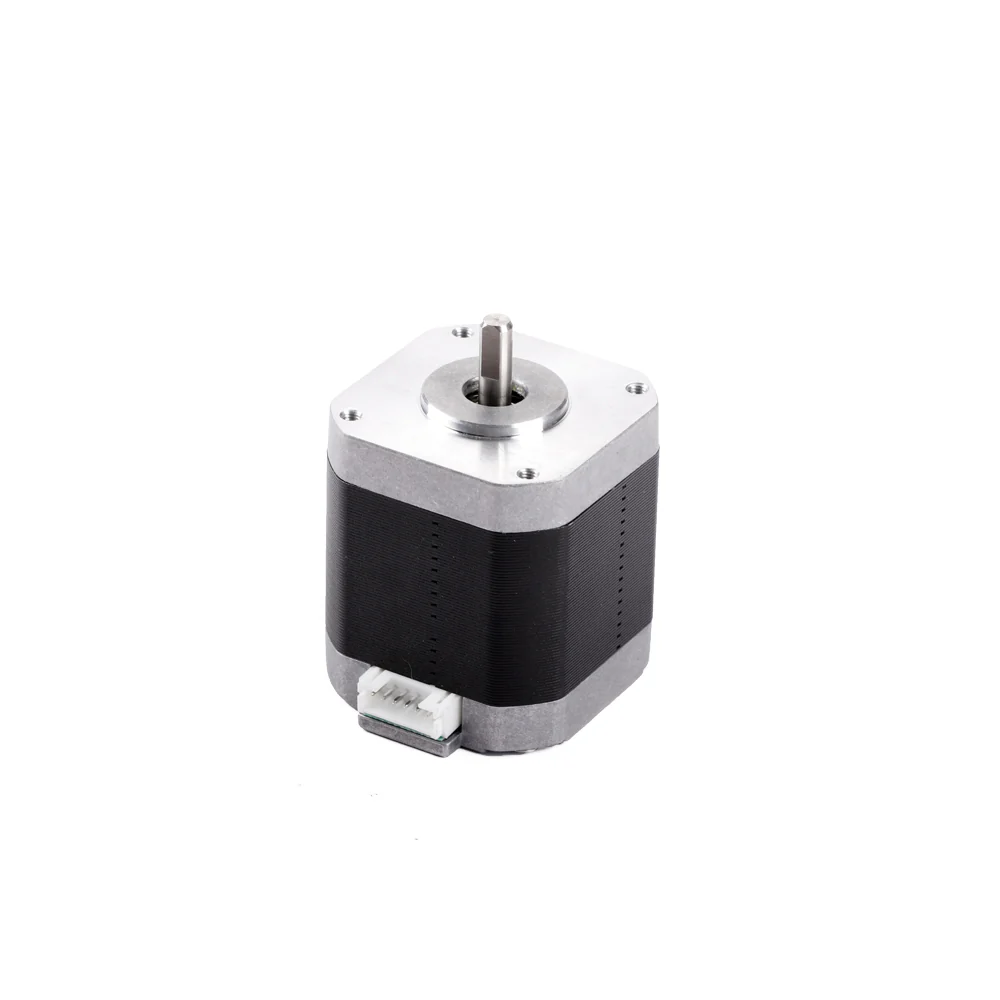

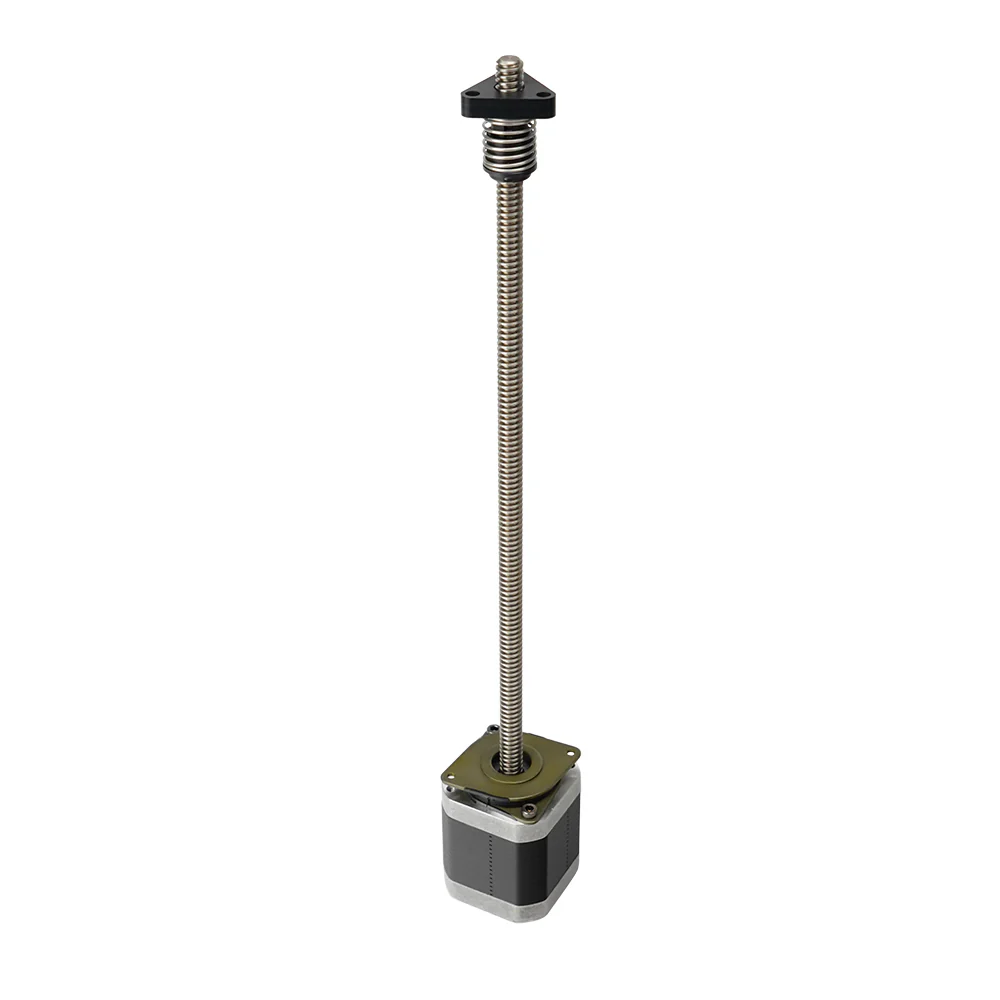

Product Specifications
| Compatible | Weight | Package Dimensions | Parameter |
|---|---|---|---|
| Photon Mono M7 Max | 782g | 482*70*74mm | 42*42*60mm / Length 363mm / Lead screw diameter 10mm / With anti-backlash nut / Anti-loose movement |
| Photon Mono M7 Pro、Photon Mono M7 | 561g | 400*71*75mm | 42 screw motor / 42*42*48MM / diameter 8MM / length 305MM / lead 2MM / pitch 2MM / 1.8° |
| Photon Mono 4 Ultra | 575g | 403*75*71mm | 42.3×42.3×48mm / Diameter: 8mm / Length: 263mm / Lead: 2mm / Pitch: 2mm / Step angle: 1.8° / Displacement ≤ 0.02mm / Plastic anti-backlash nut |
| Photon Mono M5s Pro、Photon Mono M5s、Photon Mono M5 | 630g | 415*93*68mm | 42*42*48mm / Diameter 8mm / Length 305mm / Lead 2mm / Pitch 2mm / 1.8° POM anti-backlash nut |
| Photon Mono 2 | 546g | 348*71*74mm | 42.3*42.3*48mm/diameter 8mm/length 263mm/lead 2mm/pitch 2mm/step angle 1.8° |
| Photon M3 Max | 397g | 116*72*70mm | Stepper motor/42*42*48mm/shaft length 12mm |
Replacement Guide
Please learn about the replacements on Anycubic Wiki.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Product Specifications
| Compatible | Weight | Package Dimensions | Parameter |
|---|---|---|---|
| Photon Mono M7 Max | 782g | 482*70*74mm | 42*42*60mm / Length 363mm / Lead screw diameter 10mm / With anti-backlash nut / Anti-loose movement |
| Photon Mono M7 Pro、Photon Mono M7 | 561g | 400*71*75mm | 42 screw motor / 42*42*48MM / diameter 8MM / length 305MM / lead 2MM / pitch 2MM / 1.8° |
| Photon Mono 4 Ultra | 575g | 403*75*71mm | 42.3×42.3×48mm / Diameter: 8mm / Length: 263mm / Lead: 2mm / Pitch: 2mm / Step angle: 1.8° / Displacement ≤ 0.02mm / Plastic anti-backlash nut |
| Photon Mono M5s Pro、Photon Mono M5s、Photon Mono M5 | 630g | 415*93*68mm | 42*42*48mm / Diameter 8mm / Length 305mm / Lead 2mm / Pitch 2mm / 1.8° POM anti-backlash nut |
| Photon Mono 2 | 546g | 348*71*74mm | 42.3*42.3*48mm/diameter 8mm/length 263mm/lead 2mm/pitch 2mm/step angle 1.8° |
| Photon M3 Max | 397g | 116*72*70mm | Stepper motor/42*42*48mm/shaft length 12mm |
Replacement Guide
Please learn about the replacements on Anycubic Wiki.
